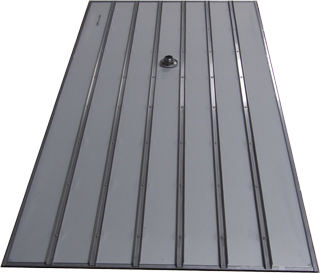

Ultra-fine bubble aeration panel

RMU MESSNER Aeration Panel: a sharp tool to greatly reduce the operating cost of sewage treatment plants.

More than 60% of the electricity consumption of the sewage treatment plant is attributed to its aeration tank. Therefore, an efficient aeration system and intelligent control unit control strategy help to save energy significantly.

RMU MESSNER Aeration Panel has been used in municipal and industrial wastewater treatment plants of different scales and operating conditions for 25 years. The aeration technology is mainly composed of RMU MESSNER Aeration Panel and related pipe fittings, including ball valves and pressure relief equipment. High-efficiency air is made into fine air bubbles, TPU special aeration disk surface material that does not require dosing, and many aeration disks that have been operated for more than 20 years. It has again proved that the RMU ultra-fine bubble aeration tray is your best choice to greatly reduce the operating cost of the sewage treatment plant.

Type: V20M50ype: V20M50

Dimensions (L x W): 2,0 m x 1,0 m

Active membrane area: 2,0 m²

Air flow: 40 m³N/h per diffuser

Max. wastewater temperature: 30,0 °C (higher temperatures upon request)
